10mm SG Coloured Sheets | Greenwall Solutions Inc.

Polycarbonate Standard Sheets – Specifications

Technical Specifications:
Structure
Structure		Standard
Thickness (mm)		4	6	8	10	16
Weight	g/m²	800	1300	1500	1700	2700
Weight	lb / ft²	0.16	0.27	0.31	0.35	0.55
Standard width	mm	1220
Standard width	Inch	48
Minimum radius for cold bending arches	mm	0.7	1.05	1.4	1.75	2.8
Minimum radius for cold bending arches	Inch	2’3″	3’5″	4’7″	5’9″	9’2″
U-Factor by ASTM C177	W / m² • ºС	3.9	3.6	3.3	3	2.3
U-Factor by ASTM C177	Btu / h • ft² • fº	0.69	0.63	0.58	0.53	0.41
R-Factor	Btu / h • ft² • fº	1.45	1.59	1.72	1.89	2.44
Optical Specification:
Thickness	Light Transmission (%) by ASTM D 1003
mm	Clear	Bronze	Ice	Orange	Blue	Yellow
4	82	42	32	55	30	70
6	80
8	80
10	79
16	72

Creating an atmosphere is an art form. Choosing the right product for the atmosphere is professionalism! If you are looking for a product that creates the ultimate atmosphere, gives a sense of openness and maximizes advantages of nature while protecting from its elements… Polygal!

Polygal produces a line of sheets that provide you with a broad range of excellent solutions for uses such as skylights roofing and covering buildings, swimming pools and glazing.

Standard Sheets double and triple layered, manufactured in various colors and degrees of transparency, are designed for use in most conventional roofing and glazing applications.

SG	COLOUR
Thickness	10mm
M.S.R.P.	N/A Sq./Ft
4′ x 8′ sheet	N/A
4′ x 12′ sheet	N/A
4′ x 16′ sheet	N/A
4′ x 24′ sheet	N/A
* Volume discount available * Taxes, crating and shipping not included * All prices in Canadian Dollar

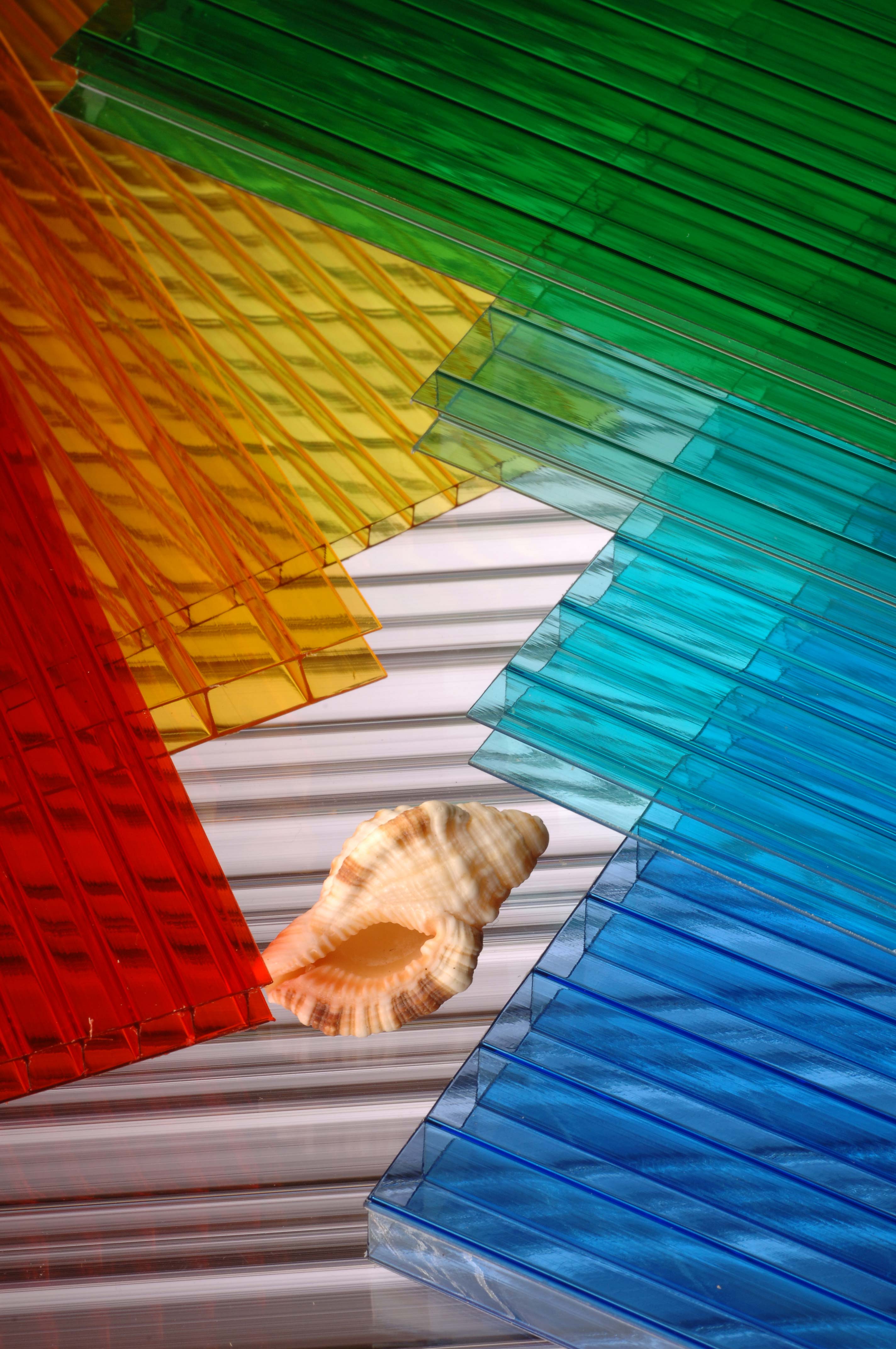

Bronze, Ice, Blue, Green, Orange, Red and Yellow
