Polycarbonate Standard Sheets

Creates the ultimate atmosphere, gives a sense of openness and maximizes advantages of nature while protecting from its elements.

   OVERVIEW

Polygal Standard Sheets double and triple layered, manufactured in various colors and degrees of transparency, are designed for use in most conventional roofing and glazing applications. Creating an atmosphere is an art form. Choosing the right product for the atmosphere is professionalism! If you are looking for a product that creates the ultimate atmosphere, gives a sense of openness and maximizes advantages of nature while protecting from its elements… Polygal!

Photo Gallery

Polycarbonate Panels

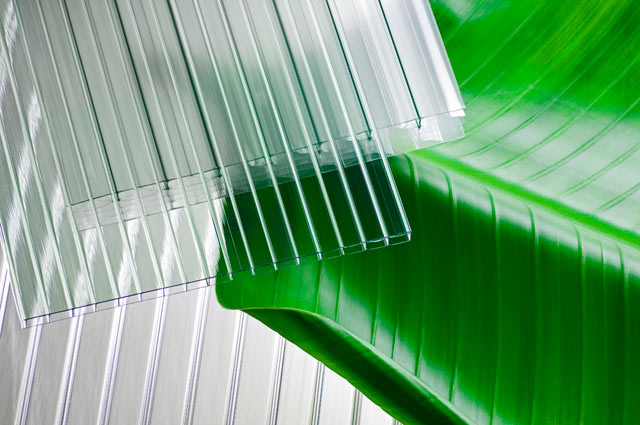

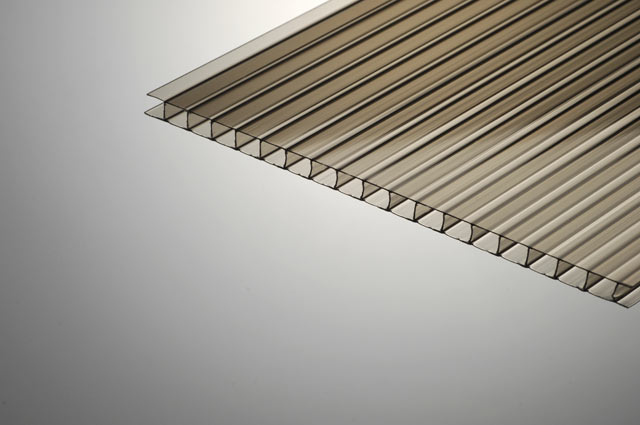

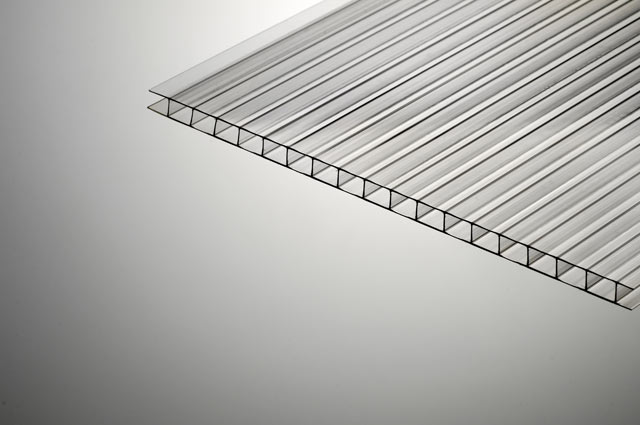

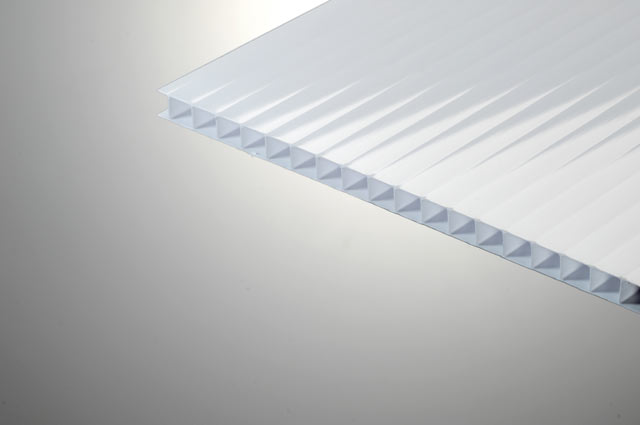

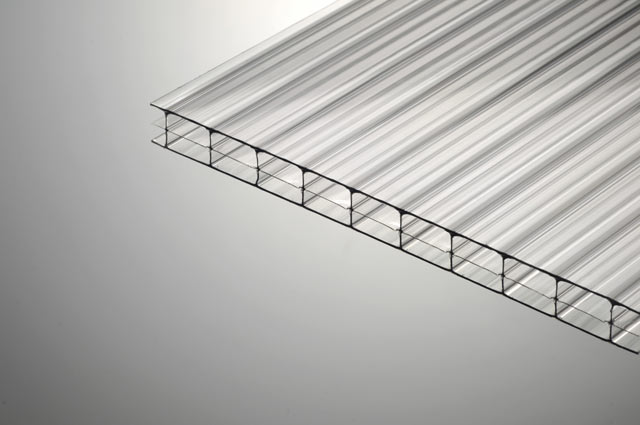

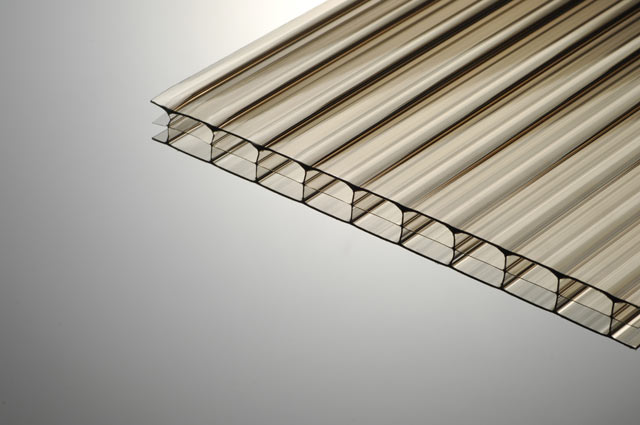

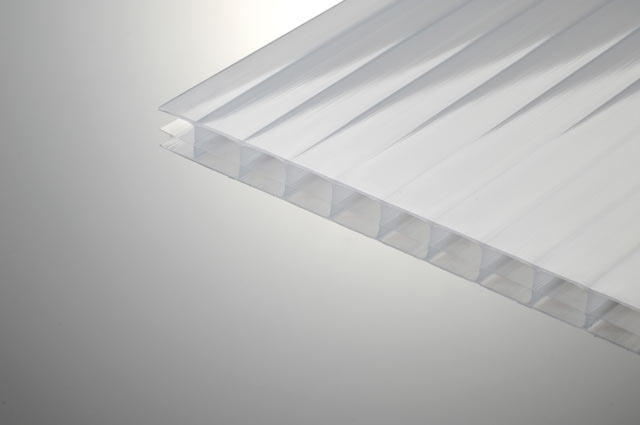

Pictures of Polycarbonate Twin wall and Multi wall sheets and Panels

Polygal multiwall polycarbonate sheets

standard grade polycarbonate sheets

Polygal produces a line of sheets that provide you with a broad range of excellent solutions for uses such as skylights roofing and covering buildings, swimming pools and glazing.

  • Excellent thermal insulation
  • Controlled Daylight Transmission
  • Virtually Unbreakable
  • Flame Retardant
  • Highly flexible ,and Easy to Install
  • Lightweight
  • UV Blocking Layer
  • Environmentally Friendly Polygal

Standard Sheets double and triple layered, manufactured in various colors and degrees of transparency, are designed for use in most conventional roofing and glazing applications.
Standard Sheets feature a UV protective layer to protect against yellowing, and are covered by a 10 Year Warranty against breakage and yellowing (6 mm and higher).
Recommended Uses: Covering of medium span structures where excellent thermal insulation is required.

   SPECIFICATIONS

Polycarbonate Standard Sheets – Specifications



Technical Specifications:
Structure 6mm-standard grade polycarbonate multi-wall panels 10mm-standard grade polycarbonate multi-wall panels 16mm-standard grade polycarbonate multi-wall panels
Standard
Thickness (mm) 4 6 8 10 16
Weight g/m² 800 1300 1500 1700 2700
lb / ft² 0.16 0.27 0.31 0.35 0.55
Standard width mm 1220, 1829
Inch 48″, 72″
Minimum radius for cold bending arches (m) 0.7 1.05 1.4 1.75 2.8
foot 2’3″ 3’5″ 4’7″ 5’9″ 9’2″
U-Factor by ASTM C177 W / m² • ºС 3.9 3.6 3.3 3 2.3
Btu / h • ft² • fº 0.69 0.63 0.58 0.53 0.41
R-Factor Btu / h • ft² • fº 1.45 1.59 1.72 1.89 2.44
Optical Specification:
Thickness Light Transmission (%) by ASTM D 1003
mm Clear Bronze Ice Orange Blue Yellow
4 82 42 32 55 30 70
6 80
8 80
10 79
16 72

    PRICE
Polycarbonate Standard Sheets – FREE Quote

SG CLR CLR CLR CLR
Thickness 6mm 8mm 10mm 16mm
6mm-standard grade polycarbonate multi-wall panels 8mm-standard grade polycarbonate multi-wall panels 10mm-standard grade polycarbonate multi-wall panels 16mm-standard grade polycarbonate multi-wall panels
M.S.R.P. $1.99 Sq./Ft $2.49 Sq./Ft $2.99 Sq./Ft $4.77 Sq./Ft
4′ x 8′ sheet $63.68 $79.68 $95.68 $152.64
4′ x 12′ sheet $95.52 $119.52 $143.52 $228.96
4′ x 16′ sheet $127.36 $159.36 $191.36 $305.28
4′ x 24′ sheet $191.04 $239.04 $287.04 $457.92
* Add 5% for colours
* Volume discount available
* Taxes, crating and shipping not included
* All prices in Canadian Dollar
